Sunday, June 17, 2007

Spring Maintenance on the ol' Chargriller

The weather in Houston was not kind to the Chargriller. It is so humid most of the year (like 10 out of 12 months) that it was constantly wet from condensation. Incidentally, this is not good for vehicles sitting in the driveway, either. Condensation would form even if I had a cover on the Chargriller...even if it was a breathable cover. For the cooking chamber it isn't a big deal because the paint stays on there pretty good. For the firebox, however, you can hear it rust because the heat of the fire takes the paint off over time. So, once or twice a year (I didn't get it done in the fall) I'll take a wire wheel to the rust and repaint the firebox. I also took the opportunity since I had it in the garage to add some bigger wheels so I can move it around a lot easier. Here is a pictorial of the process with some before and after pics.


The before shot...she's looked better.

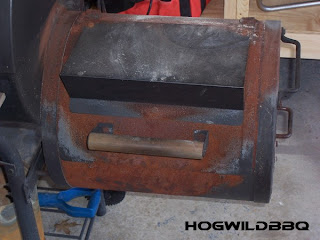

Here is a shot of the firebox. Lots and lots of rust.

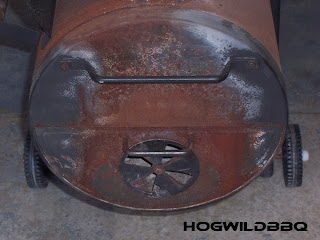

Firebox from the end....even more rust.

I'd say the firebox looks a little better, wouldn't you? It took me aboutan hour to brush the rust off, then I cleaned it with soap and water. I waited a day for it to dry before painting.

My fire baskets, and particularly the rods suspending them, have seen better days, too.

I just straighted out the rods in my vice and put them back in. I'll likely be replacing these next spring.

One of the worst things about the Chargriller are the crappy wheels they come with.

I've been wanting to upgrade for a while now. I thought about pneumatic tires, but decided on the hard plastic ones from Ace. I just used a length of steel rod for the axle...also from Ace.

The "after" pic!!! I'm really pleased with the result, especially the tires. You can see that I decided to move the old "crappy" wheels to the other side of the cooker. This kept me from having to cut some of the legs off to level the whole thing up and it makes it even easier to move around.

4 comments:

Jason said...

Nice work on the Chargriller! Now all it needs is some racing stripes. ;-)

Hogwild said...

oooooo, good idea!!!!!

fuzzyfox said...

Well done! I just bought me a Chargriller "Outlaw" and now I know what to do after a season heavy-duty-use :) Nice Work, well done... Regards from Hannover, Germany!

Stanley said...

Nice work Hog! Have you ever done any upgrades to the charcoal holder in the ash tray? the charcoal seems to fall through to easily. also it'd be nice to have bigger sturdier shelves.
thoughts?
